Common CAD File Errors That Delay CNC Machining Quotes

Most CNC quoting delays trace back to the file itself, not to how busy the shop is or how its schedule is laid out. Premium Parts' own RFQ guide makes the point directly: engineers tend to blame the shop when a quote takes too long, but the delay usually starts on the buyer's side, before anyone at the supplier has even opened the file. Every question a supplier has to ask back adds a day or two, because each one is a round trip: send the question, wait for a reply, confirm the fix, resume work. String a few of those together and a part that should have taken a day to quote takes a week.

What makes this worth fixing is that the errors causing these stalls aren't random. They fall into a small number of categories that repeat across industries and shops: bad geometry, wrong units, unmachinable features, missing drawings, and unspecified materials. Knowing which error causes which delay turns quoting from a guessing game into a checklist.

How automated quoting engines break on bad geometry

File format isn't a matter of taste. It decides whether the quoting software can even calculate a price. Most modern quoting engines rely on B-Rep, short for Boundary Representation, and it defines a solid by its exact boundary surfaces and edges. The software needs that boundary to be mathematically closed, with no gaps, so it can calculate volume and surface area and turn those numbers into a material cost and a machining time estimate.

Certain file formats corrupt that boundary on import. Legacy IGES files and poorly exported STEP AP203 files are common culprits: they introduce non-manifold edges, tiny gaps, and overlapping surfaces that break the B-Rep translation. When that happens, the software can't close the solid body. It gives up on calculating exact volume and falls back to measuring the bounding box instead, the rectangular block that would just barely contain the part. If a part is mostly empty space inside that block, like a near-net-shape forging or a complex casting, that fallback inflates the raw material estimate by a wide margin. A quote that comes back unusually high, or doesn't come back at all, is often a geometry problem wearing the disguise of a pricing problem.

STL is the format most often submitted by mistake. STL was built for 3D printing, and it represents a part as a mesh of flat triangles rather than a true solid. You lose smooth geometry to visible facets, you can't edit the file parametrically, and when you feed a mesh into toolpath generation it throws errors a true solid file wouldn't. STL has its place in additive manufacturing. It has no place in a CNC quoting pipeline.

Even within STEP, the version picked matters. RivCut's CAD file prep guide recommends STEP AP214 because it preserves color and layer data. The Machine Daily recommends STEP AP242 for a more specific reason: AP242 carries PMI (product manufacturing information) and GD&T callouts natively, embedded in the file itself. Without that data, the quoting software has no way to know which dimensions are tight tolerance and which aren't, so it can't automatically apply the scrap-rate and inspection-time multipliers that tight tolerances usually carry.

Format choice alone doesn't guarantee a clean file. Several export habits corrupt an otherwise correct format: sending the full assembly instead of isolating the single part body, leaving mates and constraints embedded in the export, and skipping the step of opening the exported file in a viewer to check it before sending. Missing faces and broken surfaces appear constantly in submitted files because exporters skip the check step, and nearly all of them are preventable at the export stage.

One trap catches even careful engineers. If a feature gets suppressed in a parametric model during design review, for whatever reason, it just isn't in the exported STEP file. Holes, pockets, and cutouts that were part of the design intent just vanish, with no warning that they're gone. So before exporting, you need to un-suppress every suppressed feature, or the supplier will quote (and eventually cut) a part that's missing geometry the engineer assumed was there. Opening the final STEP file in a free viewer before sending it catches this, along with most of the other export problems described above.

Unit and scale errors stay invisible until the part is already cut

Unit and scale errors are a different, quieter kind of mistake. They don't throw an error on import. The file opens, the geometry looks fine, and the quoting software calculates a price without complaint, because nothing about a part that's the wrong size looks broken to the software. The error becomes visible only once the part is measured on the shop floor, or once it fails to assemble with the parts around it.

The mechanism is simple arithmetic. If a part is modeled in millimeters but the CAM system reads it as inches, it comes out dramatically larger than intended. At that point the material is scrapped, the order has to be repriced from scratch, and the lead time starts over. Printform's 2026 analysis of CAD mistakes flags this exact pattern: mixing millimeters and inches, or importing reference blocks with the wrong scale, remains a real and recurring production issue. These mistakes tend to surface only after CAM programming or tooling preparation has already begun, the most expensive point in the process to catch them. As more of the quoting and programming workflow becomes automated, a small setup error like this cascades through the rest of the process faster than it would in a manual review.

Mixed-unit assemblies make this worse. Pulling in reference geometry or third-party models that were built in a different unit system than the rest of the assembly creates inconsistencies that are much harder to spot than a single file with the wrong units set.

The fix costs almost nothing compared to the failure it prevents: confirm the unit system in the CAD tool's export dialog before sending the file, and check one known reference dimension in a viewer to make sure it matches what's expected. Suppressed features belong in this same conversation for a related reason. A feature hidden during design review doesn't travel with the exported file, so the supplier is working from a model that no longer matches the actual design intent, with holes, pockets, or cutouts simply missing from what they received.

Geometry that CNC tooling physically cannot cut

A large share of quoting stalls have nothing to do with missing information. The part is fully specified and the file is clean, but the geometry itself can't be produced by a rotating cylindrical tool. If you learn to spot these features before submission, you get a same-day quote instead of a design rework cycle.

Sharp internal corners are the clearest example. A CNC end mill is a cylinder, and a cylinder just can't cut a sharp internal square corner. A design with sharp internal corners produces either a No-Quote or a request to rework the design before anyone will price it. The fix is straightforward: specify a corner radius at least as large as the tool radius needed to reach that feature's depth.

Thin walls cause a different kind of trouble. Under the force of the cutting tool, a wall that's too thin for the material and the feature height flexes instead of holding still, and that flex produces chatter, dimensional variation, and in the worst cases a scrapped part. Wall thickness has to be sized to the material's stiffness and the height of the feature it supports.

Deep pockets and holes with a high depth-to-diameter ratio run into a related problem. As that ratio climbs, the tool deflects more, chips have a harder time escaping the cut, and coolant struggles to reach the cutting edge. Features that go beyond standard tool reach need special tooling, which has to be quoted separately and adds to the lead time.

Tolerances applied without judgment create a cost problem rather than a feasibility problem. When no 2D drawing specifies which dimensions are critical, the quoting team has no way to know which features actually need tight tolerance, and the common default is to assume every feature does. That assumption inflates the price without making the part any better. PREMSA Industries' guidance is to call out tight tolerances and fine surface finishes only on the features that functionally require them, and leave the rest at a standard baseline.

Process-origin mismatch deserves its own close look, because it produces some of the most difficult design-for-manufacturability conversations a supplier has. A part designed for casting comes with draft angles, fillets, and parting-line logic built into the geometry, all of which make sense for a mold but not for a cutting tool. Submit that same part for CNC machining as a prototype, and the features that made it moldable often make it unmachinable, or machinable only at a much higher cost. Printform's 2026 analysis names this kind of process mismatch as the single most frequent issue in the designs it sees: a part modeled without draft for injection molding, a CNC part with pockets no tool can physically reach, geometry that was never designed with its actual manufacturing process in mind.

Complexity without a functional reason belongs on this list too. Features added for their own sake, with no real benefit to the part's function, still add machining time, tooling complexity, and inspection effort. Suppliers working under lead-time pressure will push unnecessarily complex designs to the back of the queue, since the clean, well-reasoned part in the same batch is faster to quote and faster to cut.

The missing, outdated, or disconnected 2D drawing

A solid model on its own can't tell a supplier which dimensions matter. If a 3D file arrives with no current 2D drawing, the supplier has to guess conservative defaults for every feature or stop and ask. Neither one is fast.

PREMSA Industries draws a clean line between what each file does. The solid model is what makes programming and fabrication possible. The drawing is what tells the supplier which features are critical and how the finished part should be checked. The ideal submission pairs a STEP file with an updated drawing, and when only one arrives, the supplier has to assume default values or interpret design intent on their own, which raises the odds of errors, revisions, and delay.

If you send a 2D drawing with no 3D file, the machining team has to rebuild the 3D model from the drawing before CAM programming can even start. That reconstruction takes real time, introduces room for misreading the design, and pushes the quote back by however long that rebuild takes.

Revision mismatch is its own problem, separate from either file going missing. Printform classifies this under poor version control and file management: working from an outdated file, the wrong revision, or a drawing that no longer matches its model produces scrap, wasted material, and lost time. As more of the CAD-to-CAM pipeline becomes automated, keeping file versions straight turns from a nice-to-have into a basic requirement for running the process at all.

A complete drawing carries information the solid model simply cannot: tolerances on the dimensions that matter, GD&T callouts, datums, surface finish requirements, thread and insert callouts, a revision history, and the criteria inspection will be checked against. None of that can be guessed by CAM software, and all of it determines whether a part can be inspected without ambiguity once it's cut. Printform's 2026 analysis lists missing GD&T as one of the three most damaging error categories across the designs it reviews. ASME Y14.5 exists to remove the kind of ambiguity that missing or inconsistent GD&T creates, but shops still apply the standard inconsistently. As inspection planning itself becomes more automated, an unclear annotation on a drawing blocks the process outright rather than just slowing it down.

The standard the sources point to for resolving this is straightforward. Use ISO 2768-m as the general baseline for features that aren't functionally critical, and reserve ASME Y14.5 callouts for the features where form or position genuinely matters. That single distinction accounts for most of the gap between a quote priced to the part's real complexity and a quote inflated by worst-case guessing. The drawing and the model are not two versions of the same information. They carry different halves of the design intent, and a supplier needs both to quote and cut the part correctly.

Missing material and finish specifications, and the cascade they trigger

A file can have clean geometry, the right format, correct units, and a complete drawing, and still stall if the material and finish aren't specified precisely. Material and finish decide which tool the shop reaches for, what speeds and feeds it runs, and how the whole job gets routed through the shop. Guess wrong on any of those, and the part coming off the machine may not survive the job it was designed for.

Premium Parts states the problem: "Aluminum" is not a material spec. Grade and temper decide how the material machines, how fast the tool wears, and how strong the finished part is in service. The same holds for plastics: PA12, PEEK, and Delrin cut differently from each other and hold up differently under load, so naming "plastic" or even naming the polymer family isn't enough. A complete material callout names the grade, the temper, and the form the stock comes in, whether that's bar stock, plate, or extrusion.

The risk here goes past a delayed quote. If a supplier has to substitute a material because the original spec was too vague to work from, and that substitute can't handle the load the part was actually designed to carry, the resulting failure is structural. A delayed quote costs a few days. A part that fails in service costs far more, and by then the file error that caused it is long buried in a part that already shipped.

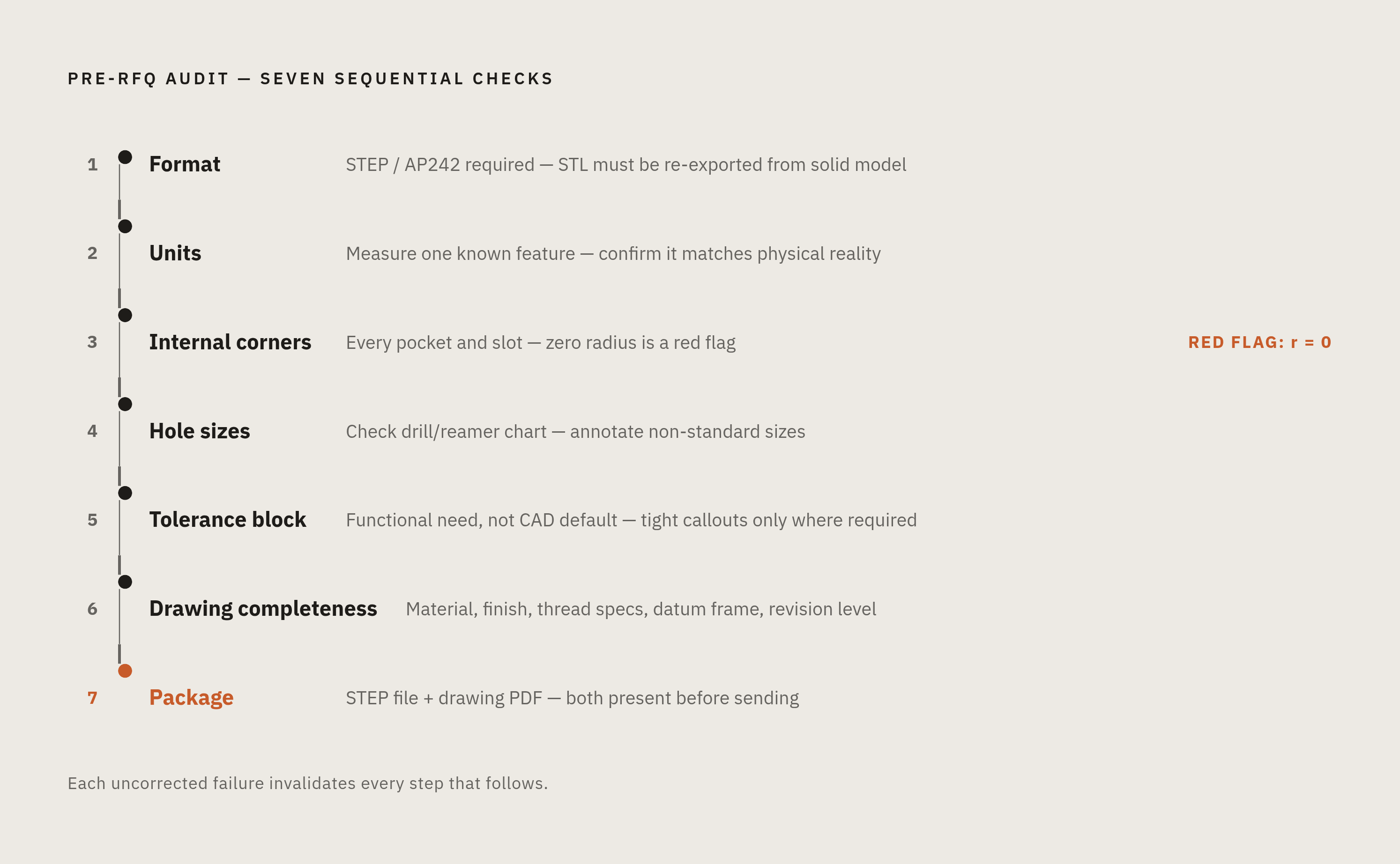

Every category in this piece, from file format to units to geometry to drawings to material spec, shares the same shape. The error is invisible to the person who made it and completely visible to the supplier trying to quote around it. Closing that gap before the file ever reaches a supplier is the fastest way to turn a week of back-and-forth into a quote that arrives the same day it was requested.
